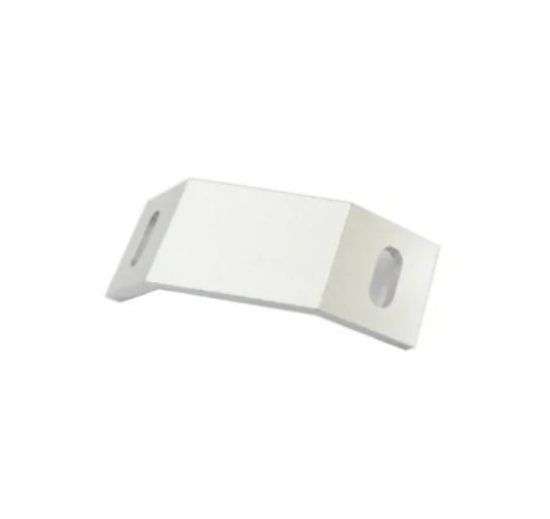

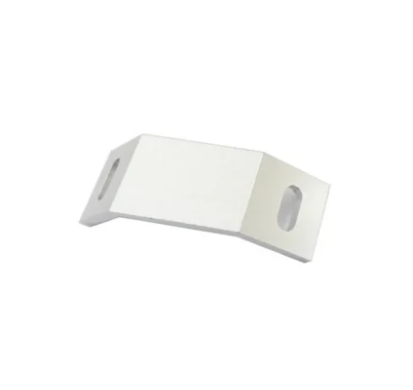

Inside Outside Corner Bracket 20mm

Description

These In-Out Corner Brackets come in handy when designing frames and structures for your projects. Designed to work with our 2020 Aluminium profiles, these brackets are an excellent choice for all sorts of projects that require a 90-degree connection between two Aluminium Extrusions.

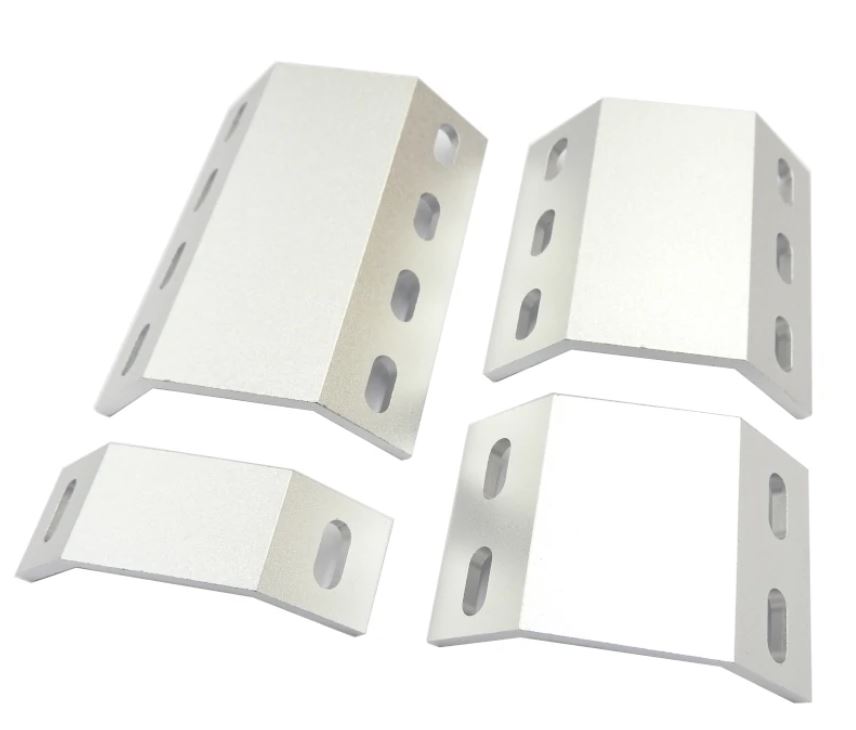

Available  Options:

• 20mm – Click HERE
• 40mm – Click HERE
• 60mm – Click HERE
• 80mm – Click HERE

Specifications:

• Material: Aluminium 6063-T5
• Finish: Silver Spray Paint

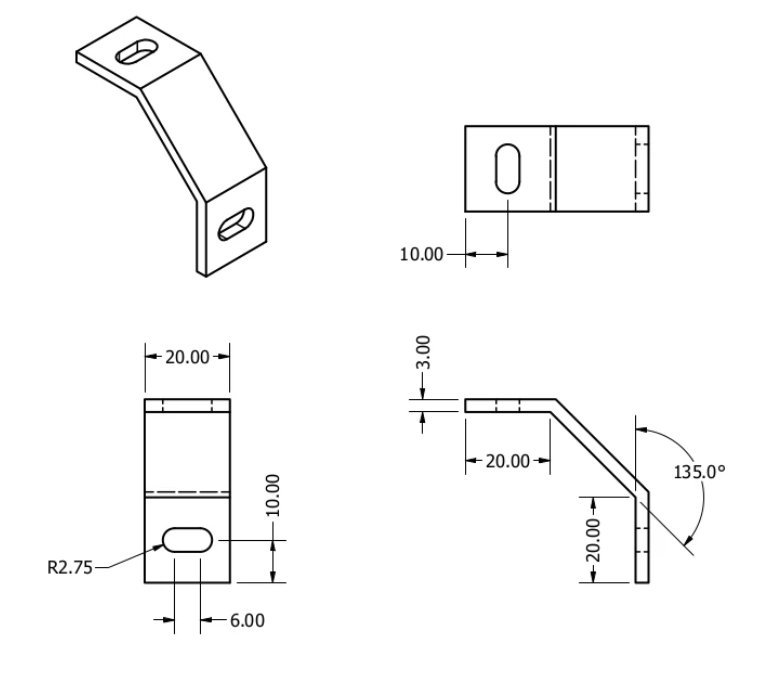

• Dimensions: 60x17x20mm
• Thickness: 3mm

Recommended Hardware:

• T-nuts.
• M5x8mm Screws.

Pro tips:

• For a stronger join, use two of these corner brackets for each join. One inside, and the other outside of the join.
